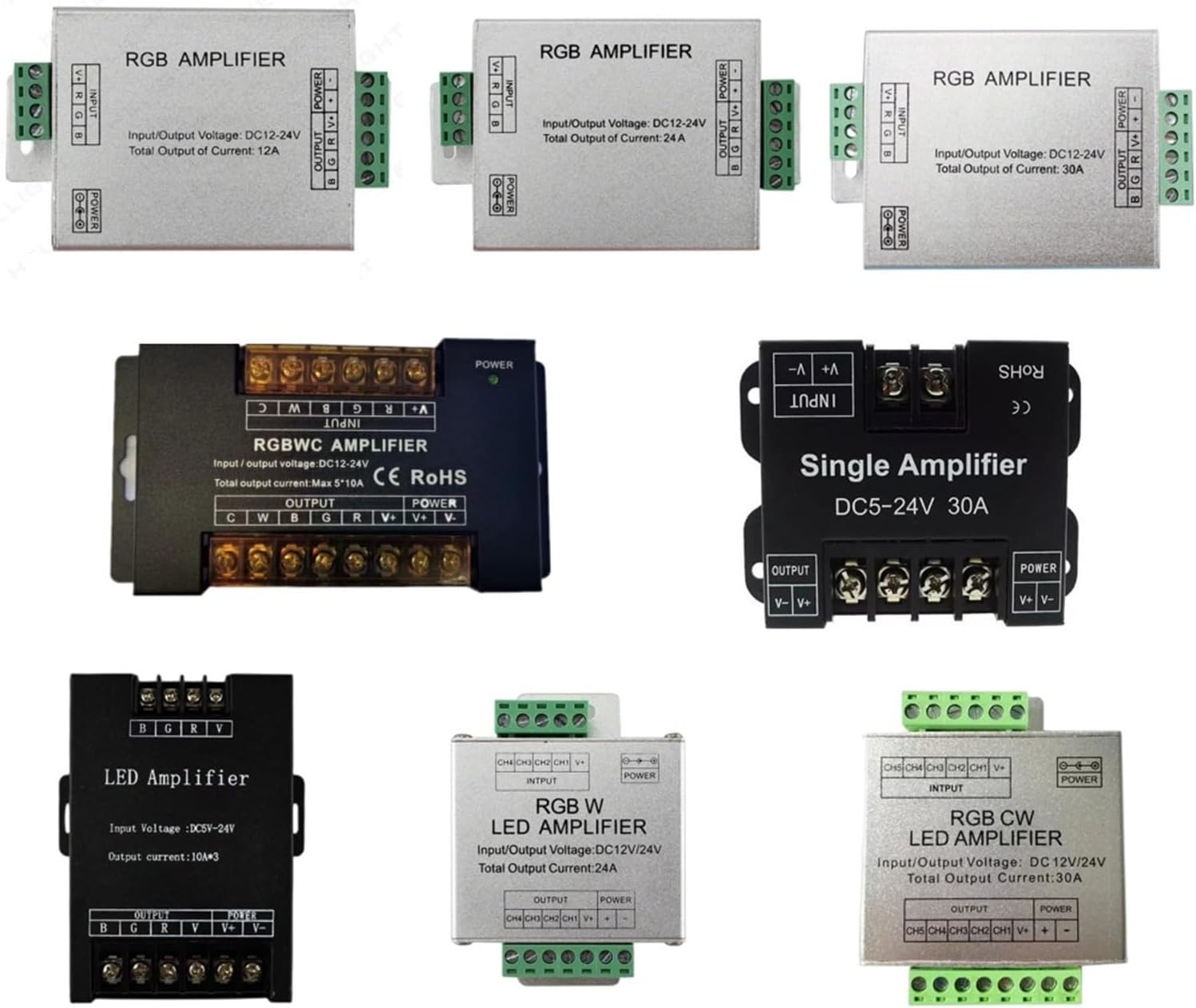

LED Amplifier Controller 1CH/3CH/4CH/5CH 12A/24A/30A/50A Suitable for Monochrome/RGB/RGBW/RGBWW RGB+CCT Light Strip Power(RGB 12a)
Product details
| Management number | 211082627 | Release Date | 2026/04/04 | List Price | $17.12 | Model Number | 211082627 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

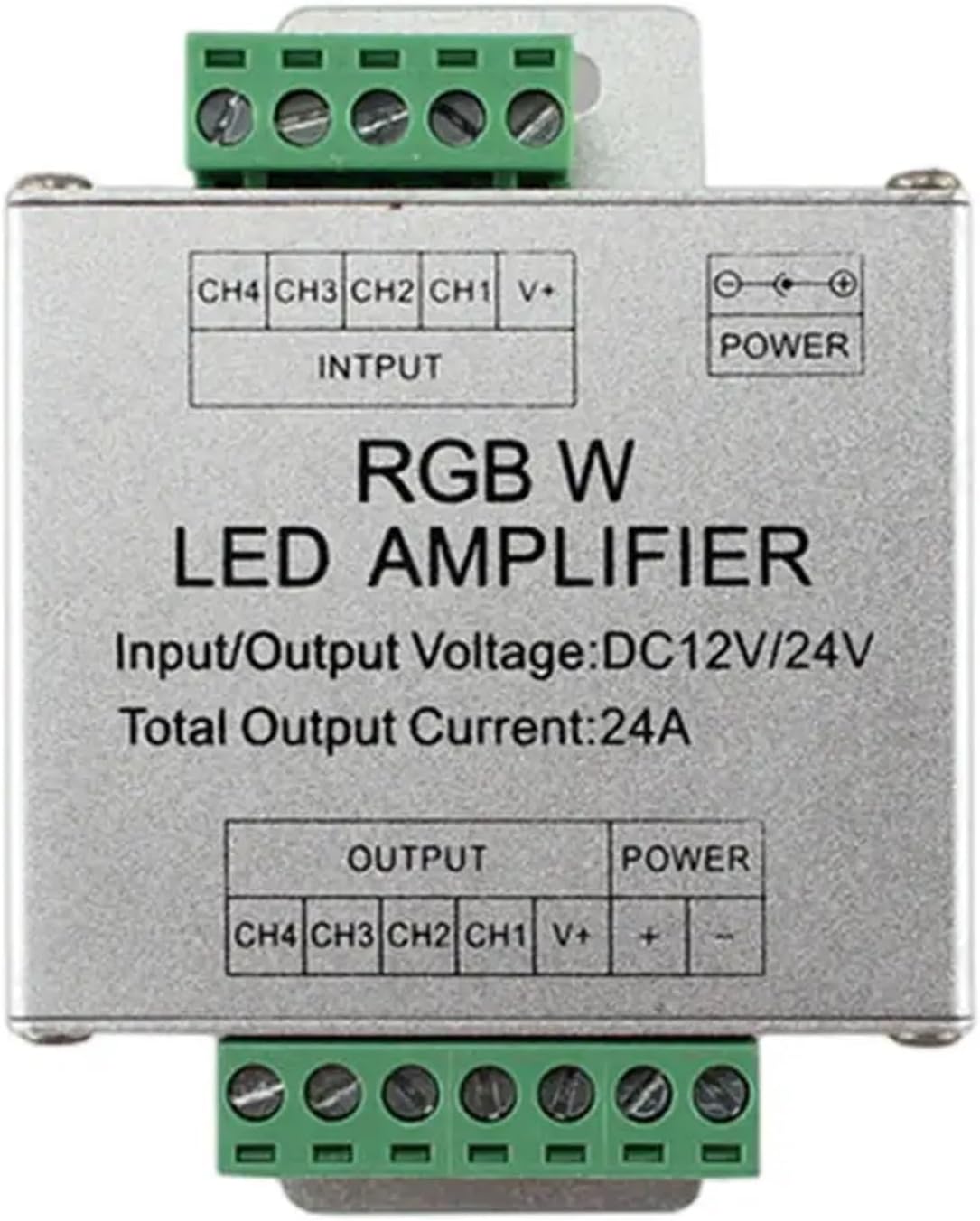

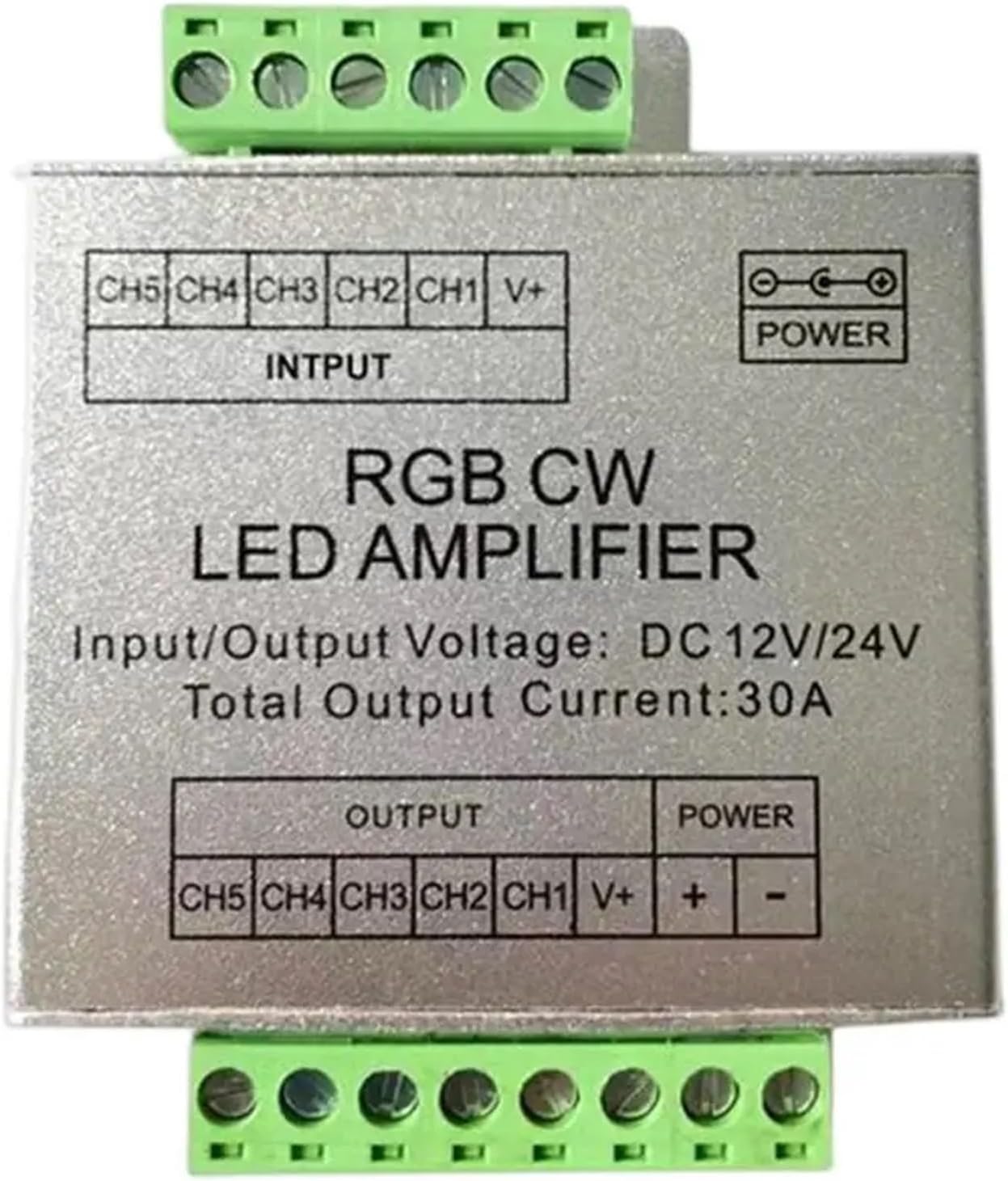

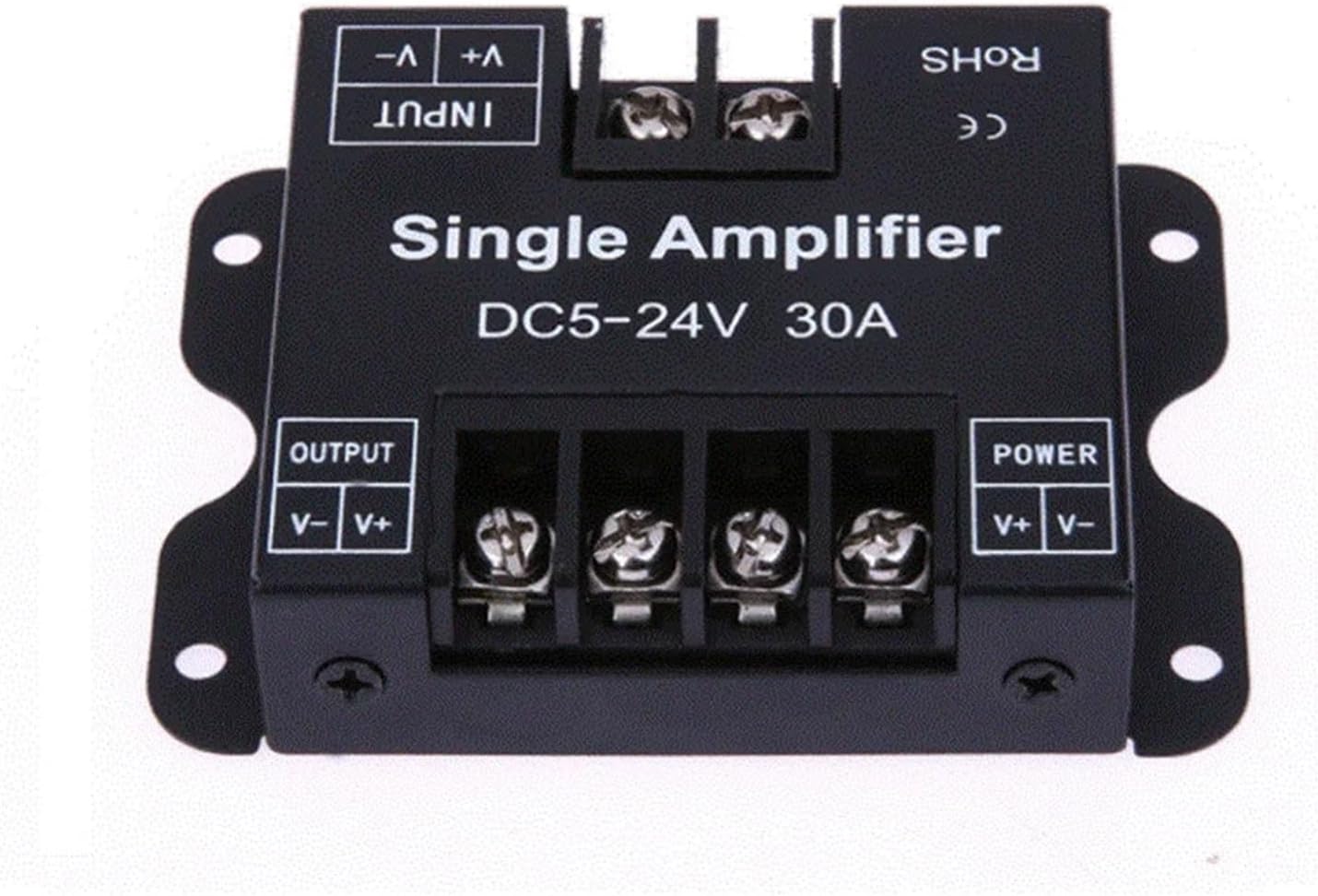

ControllersIndustrial Power SupplyLED amplifier controller 1CH/3CH/4CH/5CH 12A/24A/30A/50A suitable for monochrome/RGB/RGBW/RGBWW RGB+CCT light strip power repeater DC5/12/24VRGB amplifier is used in voltage controlled LED controller; it can receive PWM (Pulse Width Modulation). Each additional RGB amplifier more than doubles the number of connected LEDs.Receives RGB signals from the LED controller and sends the signals to another set of LED light sourcesExtend 10m SMD5050 30LEDs/m RGB LED strip/5m SMD5050 60LEDs/m RGB LED strip.12A RGB amplifier:Power supply voltage: DC12V-24VProduct size: length 95×width 65×height 24 mmConnection method: common anodemaximum. Output current: 4A per colorWorking temperature: -20～60℃Long service life >50 000 hours24A RGB amplifier: Operating temperature: -20-60CInput/output voltage: DC12-24VDimensions: 105×65×25mmConnection method: common anodemaximum. Output current: 8A per colorLong service life >50 000 hours24A RGBW amplifier:Input voltage: 12V~24VOutput: 4 channelsConnection method: common anodeProduct size: L81×W64×H24mmPacking size: L115×W70×H35mmNet weight: 90 gramsGross weight: 110 grams<;;1W<;;6A/channel<;;576W30A RGB amplifier:Power supply voltage: DC12V-24VProduct size: length 100×width 65×height 24 mmConnection method: common anodeChannel: 3*10A Max30AWorking temperature: -20～60℃Long service life >50 000 hours
- Controllers
- Industrial Power Supply
| Model | QOLOKAFG |
|---|---|
| Brand Name | QOLOKAFG |
| Manufacturer | QOLOKAFG |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
