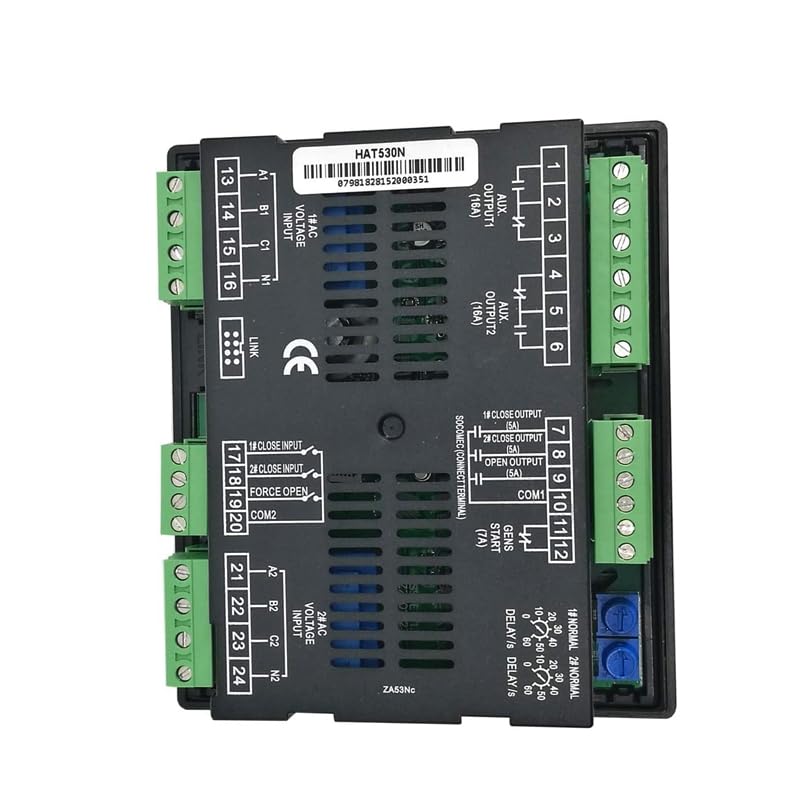

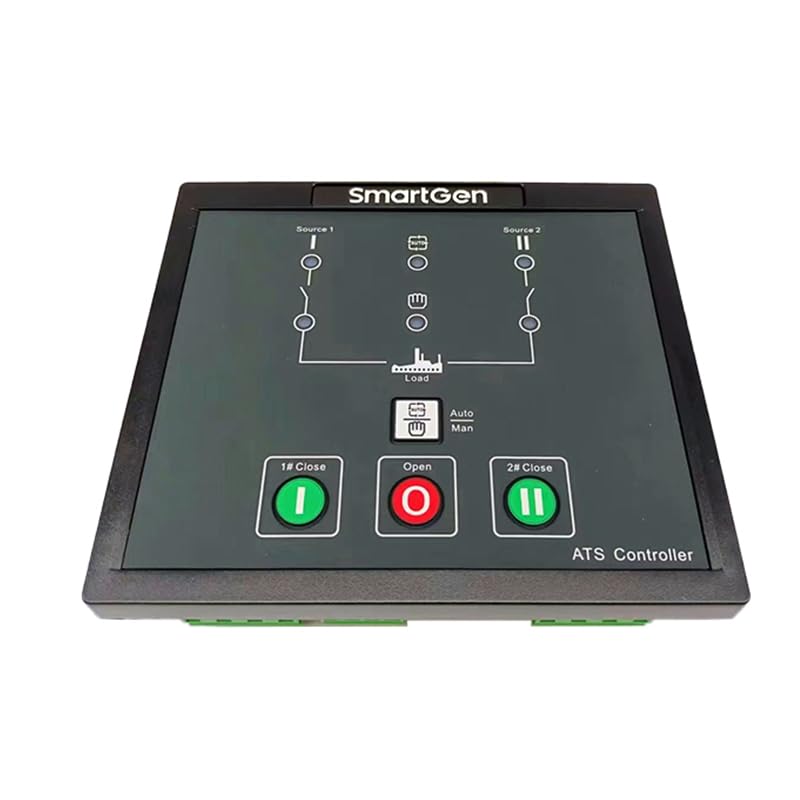

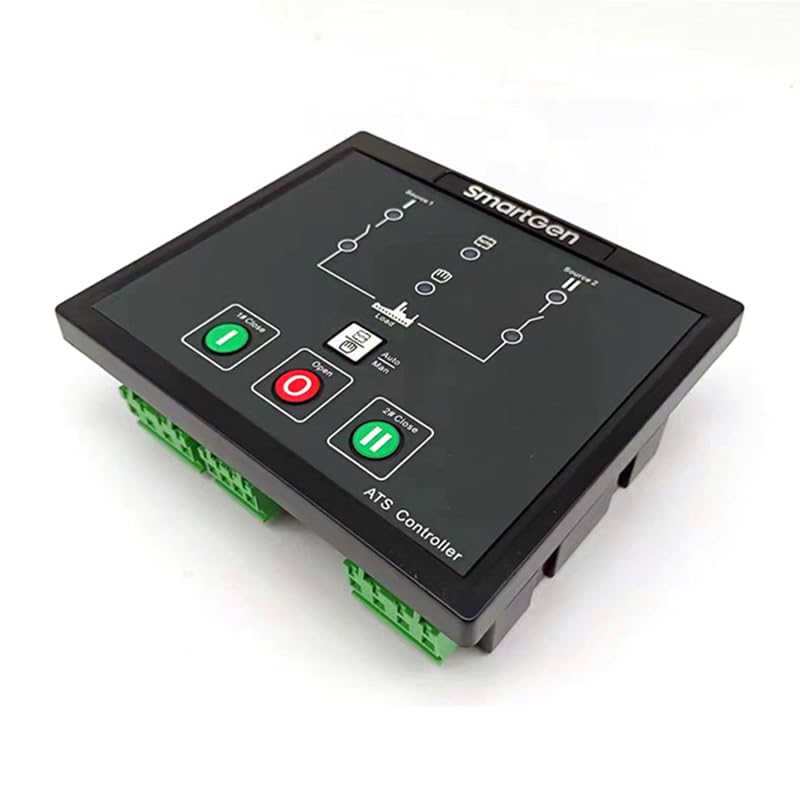

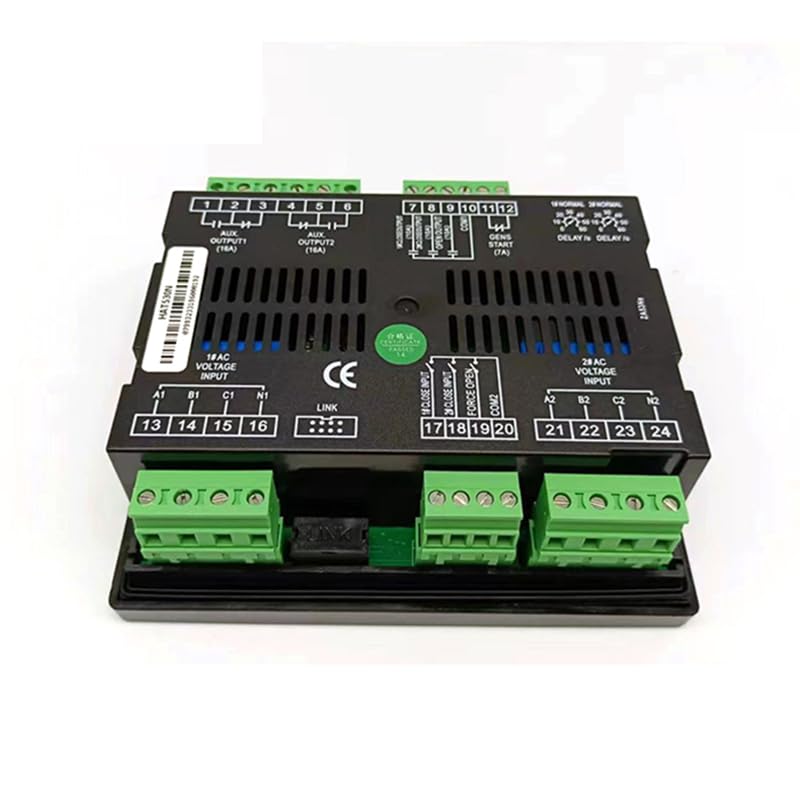

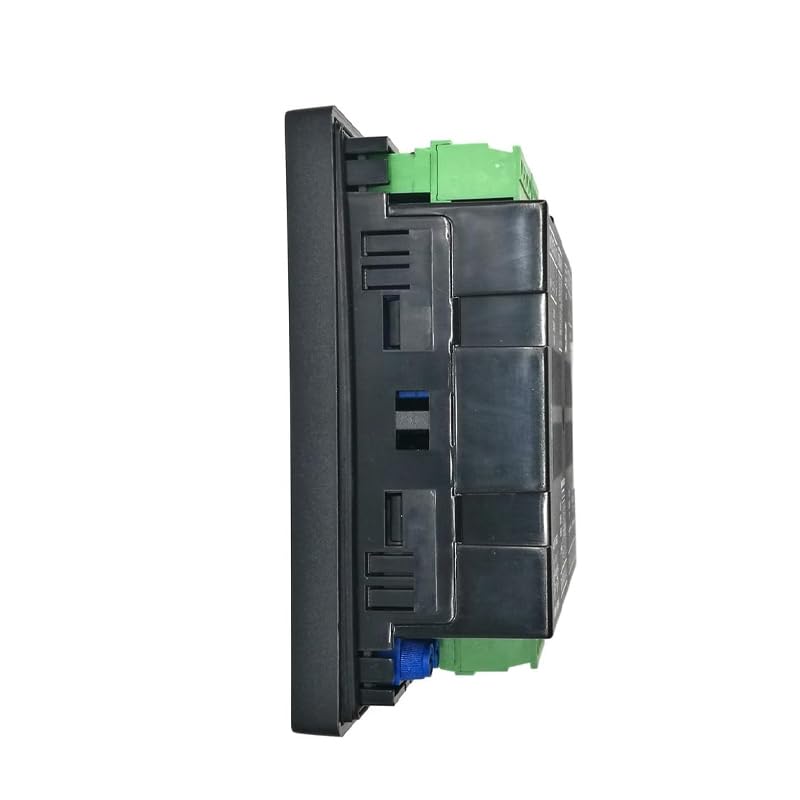

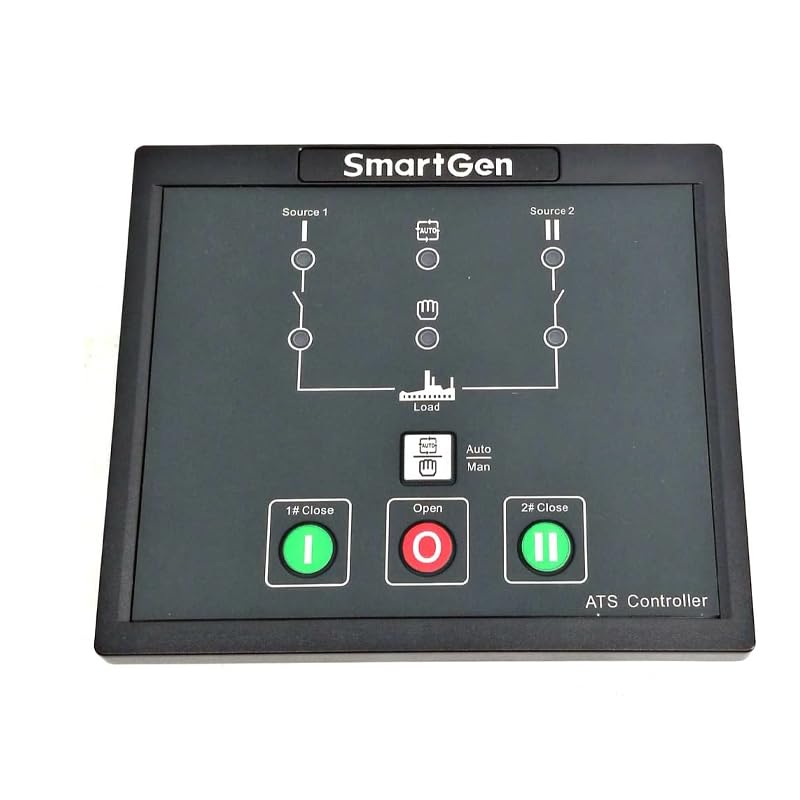

Original Smartgen HAT530N ATS Controller Automatic Transfer Switch Control Panel
Product details
| Management number | 210751896 | Release Date | 2026/04/02 | List Price | $54.47 | Model Number | 210751896 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Original Smartgen HAT530N ATS Controller Automatic Transfer Switch Control Panel Product Overview: The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired. This controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the "#1 abnormal delay" has expired. "Three remote" (remote control, remote measurement and remote communication) Function can be implemented with the help of LINK communication port. Technical Parameters: Display LED AC System 1P2W/2P3W/3P4W Alternator Frequency 50/60Hz Monitor Interface LINK Programmable Interface LINK Switch Over Priority ? Applicable Switch Type NO Breaking ATS and ONE Breaking ATS Case Dimensions(mm) 139*120*50 Panel Cutout(mm) 130*111 Operating Temp. (-25~+70)?
- Measure and display 2-way 3 phase Voltage and Frequency.
- Three remote” (remote control, remote measurement and remote communication).
- Over/under voltage, loss of phase, phase sequence wrong, over/under frequency protection function. As default, phase reverse sequence protection and over/under frequency protection are disable; however, users can set the protection function as need.
- HAT530N controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the “#1 abnormal delay” has expired.
- The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired.
| UPC | 602838312692 |
|---|---|
| Terminal | Through Hole |
| Brand Name | Auto Engineering |
| Switch Type | Push Button |
| Circuit Type | / |
| Contact Type | Normally Open |
| Manufacturer | Auto Engineering |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 5 Amps |
| Operation Mode | ON-NONE-OFF |
| Item Dimensions | 5.51 x 4.72 x 1.97 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 36 Volts |
| Specification Met | / |
| Included Components | 1 |
| Number of Positions | 1 |
| Lower Temperature Rating | 30 Degrees Celsius |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | / |
