WayPonDEV ENC1-V3P 4K HD HDMI Encoder NDI Decoder - SRT RTMP/RTSP/UDP/H265 Protocols - Support POE and Tally - 100ms Low Latency, 10/100 RJ45 Ethernet Port for Live Stream Broadcasting (Basic Kit)
Product details
| Management number | 209142562 | Release Date | 2026/03/29 | List Price | $39.01 | Model Number | 209142562 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
-Specification-Core performance:CPU : ARM Cortex A7 quad-core 1.2GHz, 32KBl-Cache, 32KB D-CacheMemory: 2GB DDR4 RAMFlash: 8GB eMMCVideo Parameters:HDMI input: HDMI 1.4 supports up to 4K 30fpsHDMI output: up to 4K30Resolution: 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440×900, 1366x768, 1280×1024, 1024x768, 800×600, 640×480Encoding format:H.264 Baseline profileH.264 Main profileH.264 High profileH.265 Main profileMJPEG/JPEG BaselineDecoding format: H264, H264, MJPEGEncoding resolution: Main: 4K, 1080P, 720P, 360P, Sub: 720P, 360PFrame rate: 1~60 adjustableMultiple reference frames: support SmartP, DualP, maximum bit rate: 20MbpsBit rate control: CBR/VBR/AVBR/FIXQP/QPMAPNetwork Parameters:Wired interface: 10/100M RJ45 network port（Supports PoE power receiving）WIFI: optional external wifi module4G/5G: Support (E8372, LinkPi 5GCPE)Transmission protocol: RTSP, RTMP, HTTP, HLS, UDP, unicast, multicastONVIF/SRT/NDI/GB28181: supportNDI: Only supports NDI HX (license purchase required), TallyFile Storage: Storage interface: USB, PowerSATA, internal space (about 6G available)File Recording Format: MP4, TS, FLV, MOV, MKV, AVI-Basic Parameters-Power supply: DC-12V 1A / PoE Module Power supplyPower: <5wWorking temperature: 0~70°CDimensions: 132×82×29mm-Package Content-ENC1-V3P HD Encoder x1Power Supply x1-Technical Support-Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)".
- [Multi-Protocol Transmission] ENC1-V3P 4K HD HDMI Encoder support up to 4K 30fps/1080p 60fps input and multi protocol live broadcasting, including SRT/RTSP/RTMP/RTMPs/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting, by enabling the SRT protocol, users can connect any channel of the encoder to OBS, vMix and other software for secondary editing and publishing.
- [Full HD Resolution] ENC1-V3P 4K HD HDMI encoder 1080P decoder Supported resolutions including 4K30, 1080P, 720P, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480.Support 3.5mm and stereo Line-in and Line-out. CBR/VBR/AVBR/FIXQP code rate control.

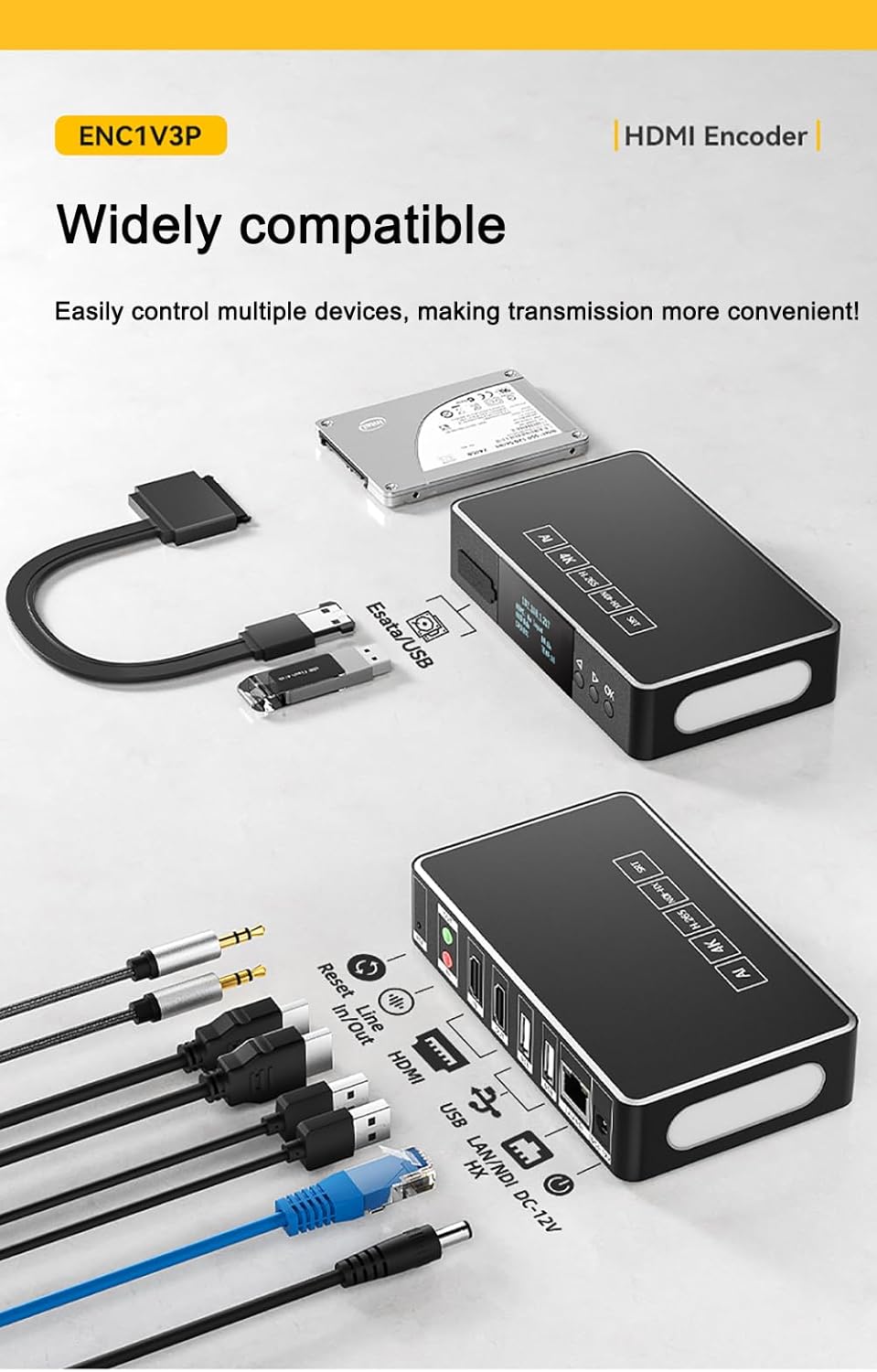

- [Support Multi-device Connectivity] ENC1-V3P 4K encoder decoder can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching. ENC1-V3 encoder also support remote centralized management, local Web management, applet control.Let video creators enjoy the joy and smoothness of wireless transmission.
- [Support for Mainstream Platforms] ENC1-V3P 4K HDMI Encoder Decoder compatible with most Internet video platforms/streaming sites; Built-in web server gives you the power to modify settings such as IP address, bit rate, and fps.ENC1-V3P also support H.264/H.265/MJPEG/JPEG Baseline video encoding format.
- [Maximum Bit Rate] 20Mbps; ENC1-V3P Not just a encoder, it support decoding, director, mixing and other functions at the same time. And can achieve one-click remote assistance, live game, online class teaching. It also supports POE as well as Tally light control, allowing creators to fulfill their video recording as well as live streaming needs in a wider range of scenarios.
- [Complete NDI functionality] At the request of the copyright owner "NewTek", customers who need to use ENC1-V3P 4K Encoder the complete NDI function need to purchase additional NDI authorization license, enjoying the smooth and fluid experience with NDI ! However, this only affects NDI, not other protocols (like SRT, RTMP, RTSP, HTTP, UDP, etc.)
- [SDK Ducument] "linkpi.cn/linksdk". Pls feel free to contact us to get the datasheet or any questions after you purchased it. How to contact us? Click WayPonDEV store and ask a question.
| Brand | WayPonDEV |
|---|---|
| Color | Basic Kit |
| Unit Count | 1.0 Count |
| Item Weight | 447 Grams |
| Manufacturer | WayPonDEV |
| Model Number | ENC1-V3P |
| BuiltIn Media | Show as picture |
| Input Voltage | 12 Volts (DC) |
| Connector Type | HDMI, Micro USB |
| Item Dimensions | 5.19 x 3.22 x 1.14 inches |
| Number of Ports | 1 |
| Power Plug Type | No Plug |
| Compatible Devices | Camera, PCs, Smartphone, Tablet, Television |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
